P2020NSE2MFC (NXP)

F2315662
нет данных

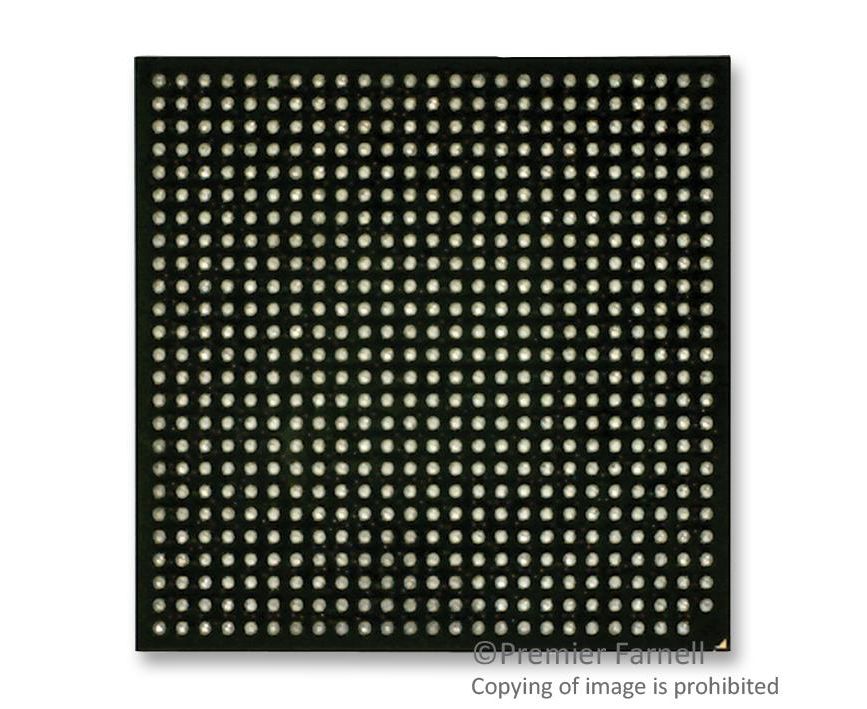

Процессор связи, серия QorIQ P2, 1.2ГГц, 1.05В, BGA-689

Документация
Technical Data Sheet EN
Product Change Notice EN

БрендNXP НаименованиеP2020NSE2MFC Цена заШтука Страна производстваUnited States СкладFarnell

Процессор связи, серия QorIQ P2, 1.2ГГц, 1.05В, BGA-689

The QorIQ P2 series Communication Processor delivers high performance per watt for dual- and single-core applications. Using advanced 45nm process technology these CPUs reach frequencies up to 1.33GHz. The QorIQ P2020 and P2010 dual- and single-core products are pin compatible with the QorIQ P1 family devices in the value performance tier, offering four interchangeable cost-effective solutions. Scaling from a single-core processor at 533MHz (P1011) to a dual-core processor at 1.2GHz (P2020), the two tiers of devices together deliver an impressive 4.5x aggregate frequency range within the same pin-out. The P2010 and P2020 devices are software compatible, sharing the e500 Power Architecture® core and peripherals, as well as being fully software compatible with the existing PowerQUICC processors. This enables customers to create a product with multiple performance points from a single board design.
  • Dual (P2020) or single (P2010) high-performance Power Architecture e500 cores
  • 512kB L2 cache with ECC, also configurable as SRAM and stashing memory
  • Three 10/100/1000Mbps enhanced three speed Ethernet controllers (eTSECs)
  • High-speed interfaces supporting various multiplexing options
  • High-Speed USB controller (USB 2.0)
  • Enhanced secure digital host controller (SD/MMC)
  • 64-bit DDR2/DDR3 SDRAM memory controller with ECC support
  • Programmable interrupt controller (PIC) compliant with OpenPIC standard
  • Two four-channel DMA controllers
  • Two I?C controllers, DUART and timers
  • Enhanced local bus controller
  • 16 General-purpose I/O signals

Области применения

Связь и Сеть, Оборона, Военная и Авиационно-космическое, Промышленное

Количество Выводов:
689вывод(-ов)
Линейка Продукции:
Серия QorIQ P2
Максимальная Рабочая Температура:
125°C
Максимальное Напряжение Питания:
1.05В
Минимальная Рабочая Температура:
0°C
Минимальное Напряжение Питания:
-
Размер Памяти:
-
Размер Ядра Микроконтроллера:
32бит
Семейство Микропроцессора:
QorIQ
Серия Микропроцессора:
P2020
Скорость ЦПУ:
1.2ГГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микропроцессора:
BGA
Тип Встроенного Интерфейса:
Ethernet, I2C, SPI, UART, USB
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
