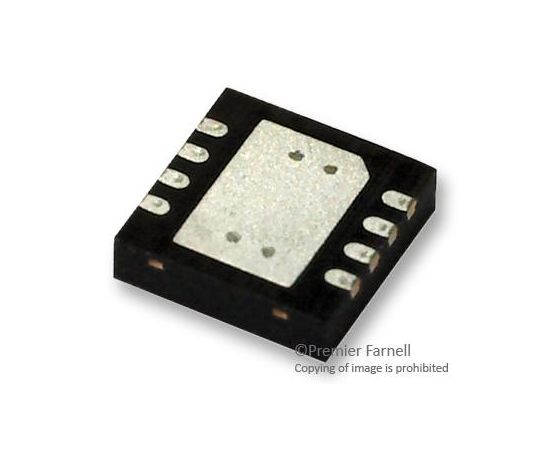

PIC12F683-I/MD (MICROCHIP)
8 Bit MCU, Flash, PIC12 Family PIC12F6xx Series Microcontrollers, 20 МГц, 3.5 КБ, 128 Байт
The PIC12F683-I/MD is a mid-range PIC12 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 6 general-purpose I/O pins, one comparator and 4-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz wide operating voltage of 2 to 5.5V.
- 35 (14-bit wide) easy instructions to learn
- 8 level hardware stack
- 1 (9-bit) file select register
- Hardware interrupt handling
- Brown-out reset (BOR)
- Power on reset (POR)
- 32kHz to 8MHz internal oscillator
- Watch dog timer (WDT)
- Two 8-bit digital timers
- One 16-bit digital timer
- 1x Capture/Compare/PWM (CCP)
- 4x Capacitive touch channels
- In-Circuit Serial Programming™ (ICSP™)
- 256bytes of EEPROM data memory
Области применения
Авто, Авто, Потребительская Электроника, Привод Двигателя и Управление, Освещение, Медицинское, Охрана
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Количество I/O:
6I/O
Количество Выводов:
8вывод(-ов)
Линейка Продукции:
PIC12 Family PIC12F6xx Series Microcontrollers
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
2В
Размер Памяти:
3.5КБ
Размер Памяти RAM:
128Байт
Семейство Микроконтроллера:
PIC12
Серия Микроконтроллера:
PIC12F6xx
Скорость ЦПУ:
20МГц
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
AEC-Q100
Стиль Корпуса Микроконтроллера:
DFN
Тип Встроенного Интерфейса:
-
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
