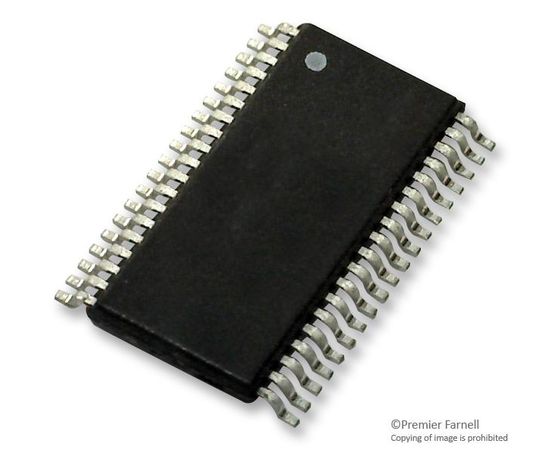

MSP430F2272IDAR (TEXAS INSTRUMENTS)
Микроконтроллер MSP430, MSP430 Family MSP430F2x Series Microcontrollers, MSP430, 16бит, 16 МГц
The MSP430F2272IDAR is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs. The device configurations with two built-in 16-bit timers, an universal serial communication interface, 10-bit A/D converter with integrated reference and data transfer controller (DTC), 32 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.
- 16-bit RISC architecture, 62.5ns instruction cycle time
- Internal frequencies up to 16MHz with four calibrated frequencies to ±1%
- Internal very-low-power low-frequency oscillator
- 32kHz Crystal
- High-frequency (HF) crystal up to 16MHz
- Resonator clock
- External digital clock source
- External resistor
- 16-bit Timer_A with 3 Capture/Compare registers
- 16-bit Timer_B with 3 Capture/Compare registers
- Enhanced UART supporting auto-baudrate detection (LIN)
- IrDA Encoder and decoder
- Synchronous SPI
- 10-bit 200ksps ADC with internal reference, sample-and-hold, autoscan and data transfer controller
- Brownout detector
- Serial on-board programming
- No external programming voltage needed
- Programmable code protection by security fuse
- Bootstrap loader
- On-chip emulation module
Области применения
Считывание и Контрольно-измерительная Аппаратура, Радиочастотная Связь, Визуализация, Видео и Зрение, Оборона, Военная и Авиационно-космическое, Медицинское
Архитектура:
MSP430
Количество I/O:
32I/O
Количество Бит:
16бит
Количество Выводов:
38вывод(-ов)
Линейка Продукции:
MSP430 Family MSP430F2x Series Microcontrollers
Максимальное Напряжение Питания:
3.6В
Минимальное Напряжение Питания:
1.8В
Размер Памяти:
32КБ
Размер Памяти RAM:
1КБ
Семейство Микроконтроллера:
MSP430
Серия Микроконтроллера:
MSP430F2x
Скорость ЦПУ:
16МГц
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Микроконтроллера:
TSSOP
Тип Встроенного Интерфейса:
I2C, LIN, SPI, UART
Тип упаковки:
Разрезная лента
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
