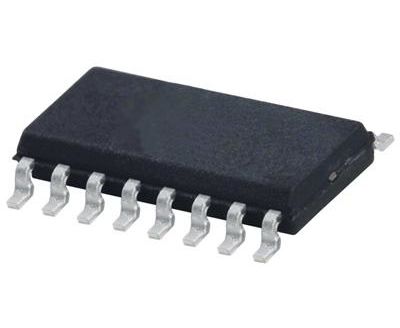

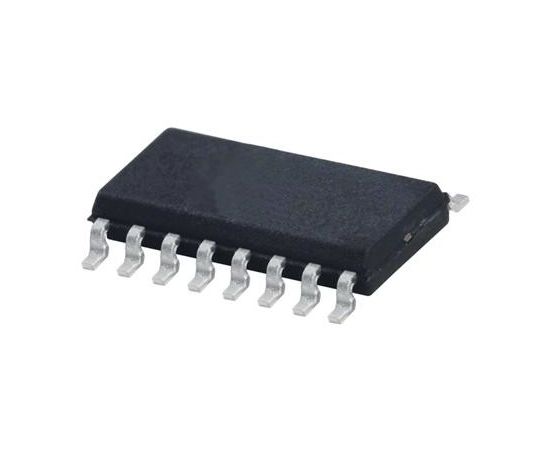

MM74HC175M (ON SEMICONDUCTOR)
Триггер, со сбросом, дополнительный выход, положительный фронт, 74HC175, D, 13 нс, 60 МГц, 5.2 мА
The MM74HC175M is a quad D-type Flip-flop with clear and with complementary outputs. It utilizes advanced silicon-gate CMOS technology to achieve the high noise immunity and low power consumption of standard CMOS integrated circuits, along with the ability to drive 10 LS-TTL loads. Information at the D inputs of the MM74HC175 is transferred to the Q and Q outputs on the positive going edge of the clock pulse. Both true and complement outputs from each flip flop are externally available. All four flip-flops are controlled by a common clock and a common clear. Clearing is accomplished by a negative pulse at the clear input. All four Q outputs are cleared to a logical '0' and all four Q outputs to a logical '1'. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
- 1µA Maximum low input current
- 80µA Maximum low quiescent current
- 4mA Minimum high output drive current
Области применения
Промышленное
Предупреждения
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
Базовый Номер / Семейство Логики:
74HC175
Базовый Номер Микросхемы Логики:
74175
Задержка Распространения:
13нс
Количество Выводов:
16вывод(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
6В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
2В
Семейство Логической Микросхемы:
74HC
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Микросхемы Логики:
SOIC
Тип Выхода Микросхемы:
Дополнительный
Тип Триггера:
Положительный Фронт
Частота:
60МГц
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
Выходные параметры
Выходной Ток:
5.2мА
