MAX3766EEP+ (MAXIM INTEGRATED PRODUCTS)

F2516991
нет данных

Драйвер лазерного диода, LAN/WAN, 622МБ/с, 4.5В до 5.5В, 60мА, QSOP-20

Документация
Technical Data Sheet EN

БрендMAXIM INTEGRATED PRODUCTS НаименованиеMAX3766EEP+ Цена заШтука Страна производстваUnited States СкладFarnell

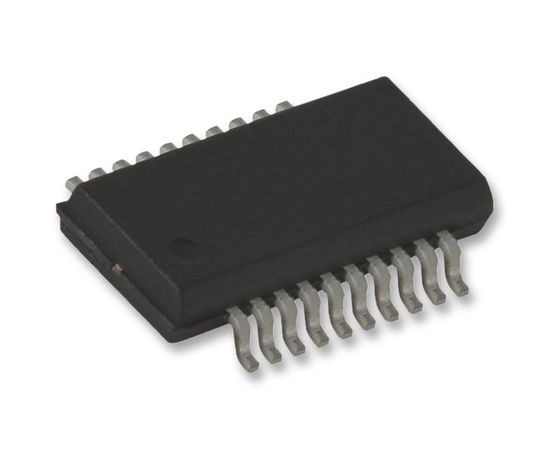

Драйвер лазерного диода, LAN/WAN, 622МБ/с, 4.5В до 5.5В, 60мА, QSOP-20

The MAX3766EEP+ is a 622Mbps LAN/WAN laser driver with automatic power control and safety shutdown in 20 pin QSOP package. This complete, easy to use program laser driver for fibre optic LAN transmitters optimized for operation at 622Mbps. It includes laser modulator, automatic power control (APC) and failure indicator with latched shutdown. A programmable modulation temperature coefficient can be used to keep transmitted extinction ratio nearly constant over wide temperature range. APC circuitry uses feedback from the laser's monitor photodiode to adjust the laser bias current producing constant output power regardless of laser temperature or age. The MAX3766 supports laser bias currents up to 80mA. The MAX3766 provides extensive laser safety features including failure indicator with latched shutdown and smooth start-up bias generator. It is used in 622Mbps ATM transmitters, 1.25Gbps fibre optic LAN transmitters and 1.25Gbps Ethernet transmitters.
  • Supply voltage range from 4.5V to 5.5V
  • Ambient operating temperature from -40°C to 85°C
  • Smooth lasers start-up and 200ps edge speed
  • Random jitter of 2ps and supply current of 25mA
  • Modulation current temperature compensation
  • Automatic power control and data duty cycle of 50%
  • Laser fail indicator with latched shutdown
  • Differential input signal amplitude of 1000mV
  • Modulator operates at data rates up to 1.25Gbps at reduced modulation current
  • Laser modulation current can be programmed up to 60mA at 622Mbps

Области применения

Связь и Сеть

Количество Выводов:
20вывод(-ов)
Линейка Продукции:
-
Максимальное Напряжение Питания:
5.5В
Минимальное Напряжение Питания:
4.5В
Соответствует Фталатам RoHS:
Будет Указано Позже
Стиль Корпуса Привода:
QSOP
Тип Лазерного Привода:
Лазерный Диод
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
