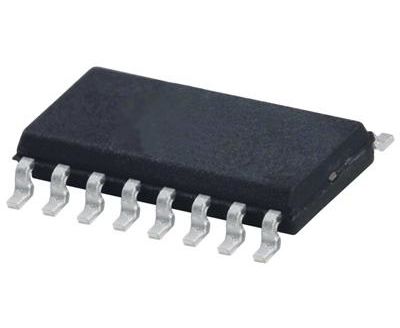

ADUM2250ARWZ (ANALOG DEVICES)
Цифровой изолятор, двойной, 2 канала, 162 нс, 3 В, 5.5 В, SOIC, 16 вывод(-ов)
The ADUM2250 series hot swappable Digital Isolators with non-latching, bidirectional communication channels. It is compatible with I?C interfaces. This eliminates the need for splitting I?C signals into separate transmit and receive signals for use with standalone optocouplers. The ADuM2250 provides two bidirectional channels, supporting a complete isolated I?C interface. It contains hot swap circuitry to prevent data glitches when an unpowered card is inserted onto an active bus. It is based on iCoupler® chip scale transformer technology from Analog Devices, Inc. iCoupler is a magnetic isolation technology with performance, size, power consumption and functional advantages compared to optocouplers. It integrates iCoupler channels with semiconductor circuitry to enable a complete, isolated I?C interface in a small form factor package.
- Open-drain interfaces
- Suitable for hot swap applications
- 30mA Current sink capability
- 1000kHz Operation
Области применения
Авто, Управление Питанием, Связь и Сеть
Задержка Распространения:
162нс
Количество Выводов:
16вывод(-ов)
Количество Каналов:
2 канала
Линейка Продукции:
ADUM2250 Series
Максимальная Рабочая Температура:
105°C
Максимальное Напряжение Питания:
5.5В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
3В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Интерфейса:
SOIC
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
