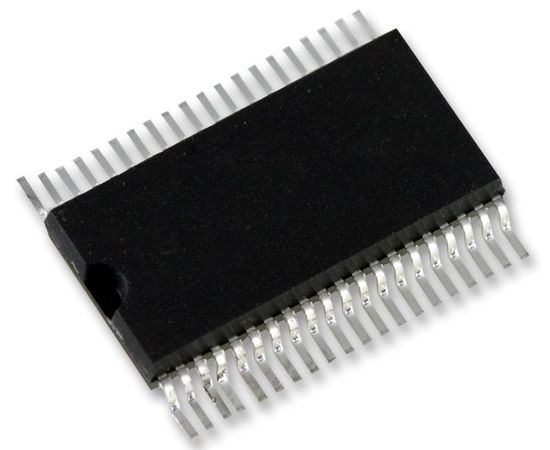

PCF8566T/1,118 (NXP)
Драйвер ЖК-дисплея, 14-сегментный, 2.5В до 6В, I2C интерфейс, VSO-40
The PCF8566T/1 is an universal LCD Driver for low multiplex rates. The peripheral device which interfaces to almost any liquid crystal display (LCD) with low multiplex rates. It generates the drive signals for any static or multiplexed LCD containing up to four backplanes and up to 24 segments and can easily be cascaded for larger LCD applications. It is compatible with most microprocessors or microcontrollers and communicates via a two-line bidirectional I?C-bus. Communication overheads are minimized by a display RAM with auto-incremented addressing, by hardware sub addressing and by display memory switching (static and duplex drive modes).
- Single chip LCD controller and driver
- Versatile blinking modes
- No external components required (even in multiple device applications)
- Internal LCD bias generation with voltage-follower buffers
- 24 x 4-bit RAM for display data storage
- Auto-incremented display data loading across device sub address boundaries
- Display memory bank switching in static and duplex drive modes
- LCD and logic supplies may be separated
- Low power consumption
- Power-saving mode for extremely low power consumption in battery-operated and telephone applications
- I?C-bus interface
- TTL and CMOS compatible
- Compatible with any 4, 8 or 16-bit microprocessor or microcontroller
- May be cascaded for large LCD applications (up to 1536 segments possible)
- Optimized pinning for plane wiring in both and multiple PCF8566 applications
- Manufactured in silicon gate CMOS process
Области применения
Потребительская Электроника, Переносные Устройства, Связь и Сеть, Компьютеры и Периферия, Визуализация, Видео и Зрение
Количество Выводов:
40вывод(-ов)
Количество Сегментов:
14
Количество Цифр:
6
Линейка Продукции:
-
Максимальная Рабочая Температура:
85°C
Максимальное Напряжение Питания:
6В
Минимальная Рабочая Температура:
-40°C
Минимальное Напряжение Питания:
2.5В
Соответствует Фталатам RoHS:
Да
Стиль Корпуса Привода:
VSO
Тип Интерфейса:
I2C
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
