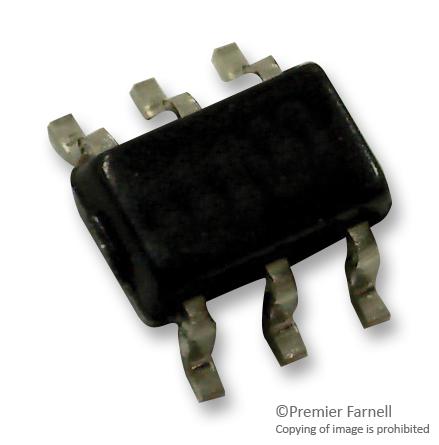

USBUF01W6 (STMICROELECTRONICS)
Фильтр ЭМП, 2-канальный, согласующий элемент USB Upstream, защита от ЭСР, SOT-323-6
The USBUF01W6 is an EMI Filter and Line Termination for USB upstream ports. The low-pass EMI analogue filter specification requires upstream ports to be terminated with pull-up resistors from the D+ and D- lines to Vbus. On the implementation of USB systems, the radiated and conducted EMI should be kept within the required levels as stated by the FCC regulations. The filter provides the recommended line termination while implementing a low pass filter to limit EMI levels and providing ESD protection which exceeds IEC 61000-4-2 level 4 standards.
- Integrated Rt series termination and Ct bypassing capacitors
- EMI/RFI noise suppression
- Required line termination for USB upstream ports
- High flexibility in the design of high density boards
Области применения
Связь и Сеть, Компьютеры и Периферия, Потребительская Электроника
Предупреждения
ESD sensitive device, take proper precaution while handling the device.
Количество Выводов:
6вывод(-ов)
Количество Линий Данных:
2 Линии Данных
Линейка Продукции:
-
Стиль Корпус Фильтра:
SOT323
Схема Фильтра:
RC П-образный Фильтр
Тип Фильтра от ЭМП:
USB Upstream и Фильтр ЭМП с Защитой от ЭСР
SVHC (Особо Опасные Вещества):
No SVHC (17-Dec-2015)
RoHS статус:
Да
