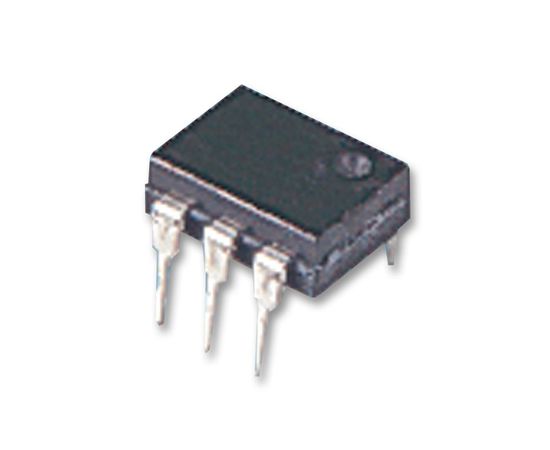

MOC3023M (ON SEMICONDUCTOR)
Оптопара, с триаком на выходе, DIP, 6 вывод(-ов), 5.3 кВ, Не Пересекающий Ноль, 400 В
The MOC3023-M from Fairchild is a through hole random phase triac driver output optocoupler in 6 pin DIP package. This device contains a GaAs infrared emitting diode and a light activated silicon bilateral switch which functions like a triac. This device is designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 VAC operation. Typical applications include industrial controls, solenoid/valve control, traffic lights, static AC power switch, vending machines, incandescent lamp dimmers, solid state relays and lamp ballasts.
- Peak blocking voltage of 400V
- Isolation voltage of 4.17KV
- Non zero crossing triac operating mode
- UL 1577 and DIN-EN IEC60747-5-5 approved
- Operating temperature range from -40°C to 85°C
- LED trigger current is 5mA
Области применения
Промышленное, Освещение, Привод Двигателя и Управление
Количество Выводов:
6вывод(-ов)
Линейка Продукции:
-
Напряжение Изоляции:
5.3кВ
Пиковое Напряжение Состояния Выкл. Vdrm:
400В
Рабочий Режим Триака:
Не Пересекающий Ноль
Стиль Корпуса Оптопары:
DIP
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
RoHS статус:
Да
