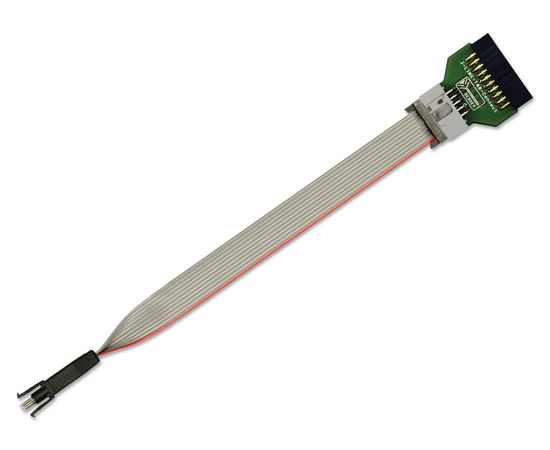

8.06.04 J-LINK NEEDLE ADAPTER (SEGGER)

The 8.06.04 J-LINK NEEDLE ADAPTER has been designed to connect J-Link to a PCB which does not come with a mating connector or programming header. The designed pattern with 3 locating pins ensures, that the adapter can only be connected in one way. The needle adapter allows manufacturers to save costs and space on their PCBs since there is no need to provide the PCB with additional connectors. It adapts from the 20 pin 0.1inch JTAG to a 10 pin needle connector. J-Link Needle Adapter is compatible to J-Link, J-Link Pro, J-Link ULTRA+, J-Link EDU, Flasher ARM, Flasher RX, Flasher PPC and Flasher Portable.
