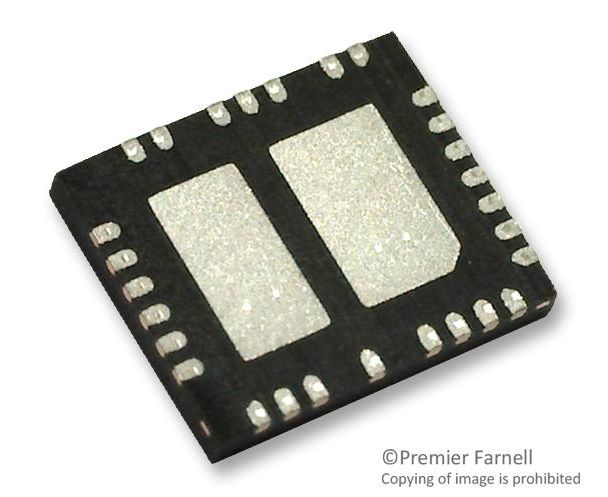

LT3955EUHE#PBF (LINEAR TECHNOLOGY)
Драйвер светодиода, 1 выход, повышающий, понижающий, обратноходовой, SEPIC, 4.5В-60В (Vin), 1МГц
The LT3955EUHE#PBF is a DC/DC Converter designed to operate as a constant-current source and constant-voltage regulator. It features an internal low-side N-channel MOSFET rated for 80V/3.5A. The LT3955 is ideally suited for driving high current LEDs, but also has features to make it suitable for charging batteries and super-capacitors. The fixed frequency, current mode architecture results in stable operation over a wide range of supply and output voltages. A voltage feedback pin serves as the input for several LED protection features and also makes it possible for the converter to operate as a constant-voltage source. A frequency adjust pin allows the user to program the frequency from 100kHz to 1MHz to optimize efficiency, performance or external component size. The PWM input can be configured to self-oscillate at fixed frequency with duty ratio programmable from 4 to 96%. When driven by an external signal, the PWM input provides LED dimming ratios of up to 3000:1.
- Programmable PWM dimming signal generator
- Constant current (±3%) and constant-voltage (±2%) regulation
- Accurate analogue dimming
- Output short-circuit protected boost
- Open LED protection and reporting
- Programmable VIN UVLO with hysteresis
- C/10 Indication for battery chargers
- 0 to 80V Rail-to-rail current sense range
Области применения
Светодиодное Освещение, Потребительская Электроника
Выходное Напряжение:
-
Количество Выводов:
36вывод(-ов)
Количество Выходов:
1выход(-ов)
Линейка Продукции:
-
Максимальная Рабочая Температура:
125°C
Максимальное Входное Напряжение:
60В
Минимальная Рабочая Температура:
-40°C
Минимальное Входное Напряжение:
4.5В
Соответствует Фталатам RoHS:
Да
Стандарты Автомобильной Промышленности:
-
Стиль Корпуса Привода:
QFN
Топология Устройства:
Повышающий, Понижающий, Понижающий-Повышающий, Обратноходовой, SEPIC
Частота Коммутации:
1МГц
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
