9907 (BELDEN)

F1218658
нет данных

Коаксиальный кабель, RG58A, 20 AWG, 50 Ом

Документация
Technical Data Sheet EN

БрендBELDEN Наименование9907 Цена за1 Метр Страна производстваUnited States СкладFarnell

Коаксиальный кабель, RG58A, 20 AWG, 50 Ом

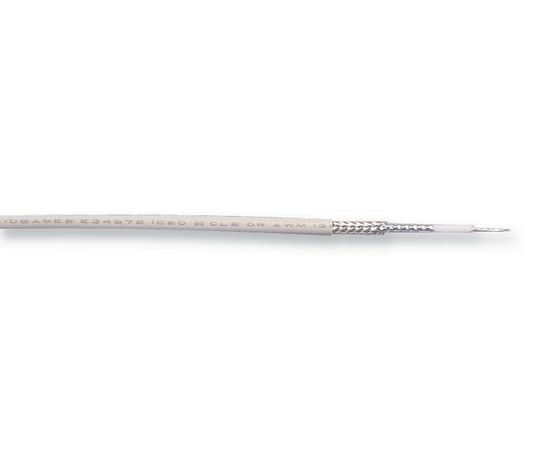

The 9907 is a thinnet 10Base2 Ethernet Coaxial Cable with 20AWG stranded (19 x 32) 0.037-inch tinned copper conductor, foam polyethylene insulation, Duobond® II bonded aluminium foil-polyester tape (100% coverage) plus an overall tinned copper braid shield (93% coverage) and grey PVC jacket. This coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, they are used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. Coaxial cable (coax) is typically identified or classified according to its impedance or RG-type. Belden® coaxial cable is tested with equipment that simulates every known environmental and electrical performance condition. As a result, this cable can be counted on for positive, reliable and trouble-free operation.
  • CPR: Not Yet Qualified
  • 50R Nominal characteristic impedance
  • 25.4pF/ft Conductor to shield nominal capacitance
  • 80% Nominal velocity of propagation
  • 8.8R/1000ft at 20°C Nominal conductor DC resistance
  • 5.8R/1000ft at 20°C Nominal outer shield DC resistance
  • UL1685 Flame tested

Области применения

Промышленное

Внешний Диаметр:
4.7мм
Длина Катушки (Дюймовый):
-
Длина Катушки (Метрический):
-
Импеданс:
50Ом
Линейка Продукции:
-
Максимальное Количество Жил x Размер Жил:
19 x 32AWG
Материал Внешней Изоляции:
ПВХ
Материал Проводника:
Медь
Поперечное Сечение Проводника:
-
Размер Проволоки:
20AWG
Тип Коаксиального Кабеля:
RG58A
Цвет Внешней Изоляции:
Серый
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
