IL19-C20-H05-3150-200 (SCHAFFNER)
Сетевой шнур, IEC 60320 C19, IEC 60320 C20, 2 м, 16 А, 250 В AC, Черный

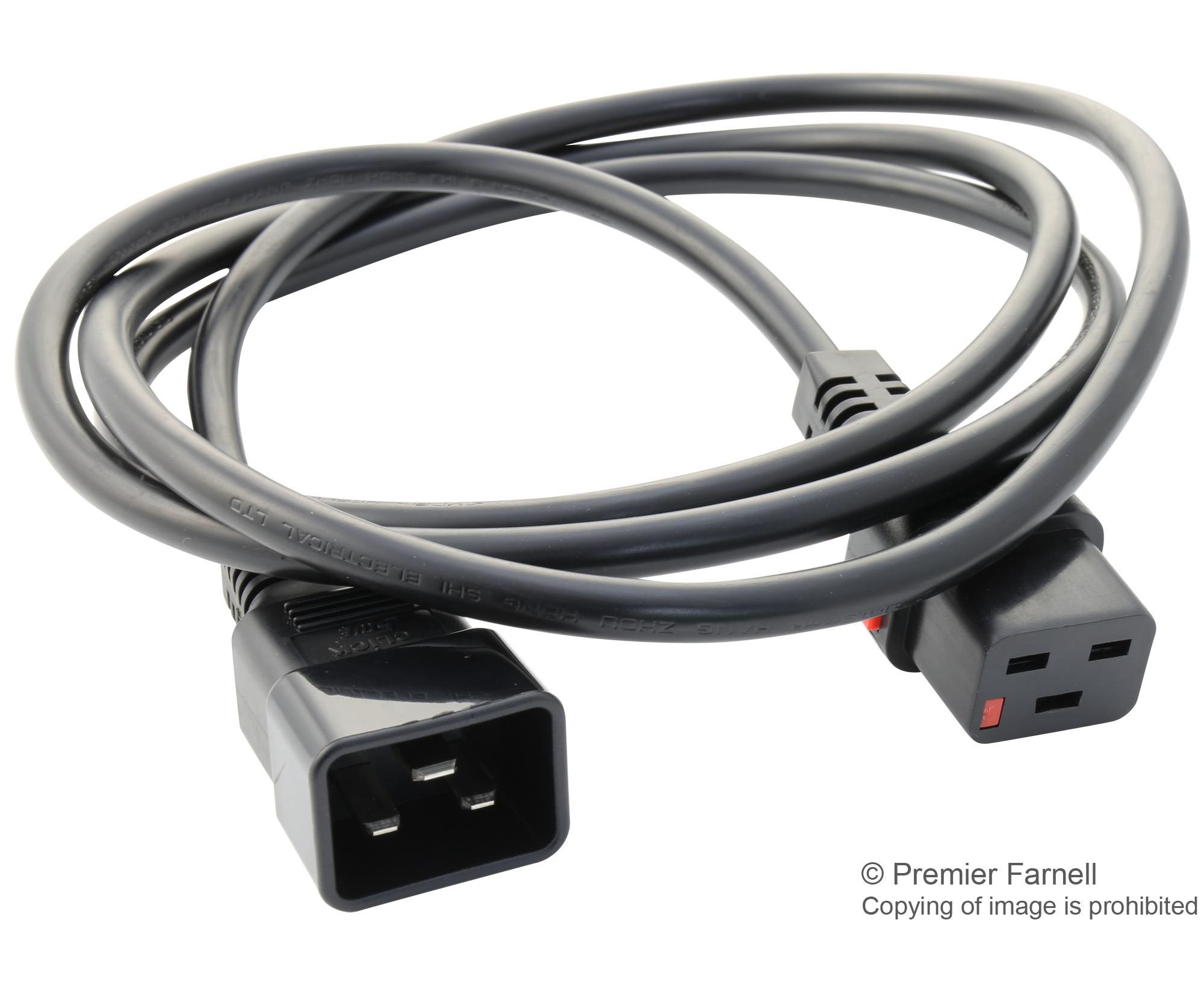

The IL19-C20-H05-3150-200 is a 200cm H05VV-F IEC black Cable Assembly with locking system for IEC C20 inlet. It offers IEC-lock straight cable with IEC C19 female plug to straight line side plug IEC 20 male. The locking system has a tensile force of typical 200N. It is recommended to use it with flange mount filters. This power cord is with IEC lock guard against accidental disconnection of all electrical appliances with an IEC inlet. It offers no exchange or modification of the IEC inlet or IEC inlet filter system is needed.
- Easy retrofit for all electronic equipments and device
- Protection class-I
- Suitable for use with any C14 IEC inlet
- 70°C Maximum pin temperature
- Locking system for standardized IEC C14/C20 inlet filter
- No accidental disconnection
- Fits any Schaffner IEC C14/C20 inlet filter
- Retrofit for any IEC C14 inlet
- IP20 Protection
- -25 to 70°C Temperature range
Области применения
Промышленное, Управление Питанием
Длинна Кабеля - Дюймовый:
6.56фут
Длинна Кабеля - Метрическая:
2м
Линейка Продукции:
-
Номинальное Напряжение:
250В AC
Соединитель Типа A:
IEC 60320 C19
Тип Соединителя B:
IEC 60320 C20
Ток:
16А
Цвет Внешней Изоляции:
Черный
SVHC (Особо Опасные Вещества):
No SVHC (15-Jan-2018)
RoHS статус:
Да
