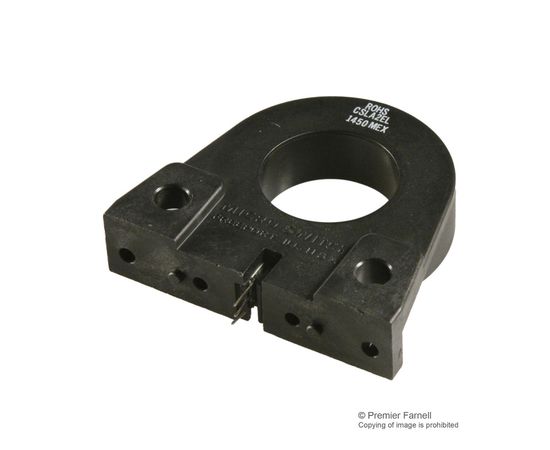

CSLA2EL (HONEYWELL)
Датчик тока, серия CSLA, линейный, -550А до 550A, потребитель, источник на выходе, 6В DC до 12В DC
The CSLA2EL is an inductive analogue Linear Current Sensor incorporates 91SS12-2 and SS94A1 linear output hall effect transducer (LOHET™). The sensing element is assembled in a printed circuit board mountable housing. This housing is available in four configurations. Normal mounting is with 0.375-inch long 4-40 screw and square nut (not provided) inserted in the housing or a 6-20 self-tapping screw. The combination of the sensor, flux collector and housing comprises the holder assembly. This sensor is ratiometric.
- Linear output
- AC or DC current sensing
- Through-hole design
- Fast response time
- Output voltage isolation from input
- Minimum energy dissipation
- Maximum current limited only by conductor size
- Adjustable performance and built-in temperature compensation assures reliable operation
- Accurate and low-cost sensing
- -25 to 85°C operating temperature range
- PBT polyester housing
- PCB on 3-pin mounting
Области применения
Привод Двигателя и Управление, Безопасность, Считывание и Контрольно-измерительная Аппаратура, Робототехника, Управление Питанием, Связь и Сеть, Авто, Измерительное
Время Реакции:
3мкс
Выход Датчика:
Напряжение
Диапазон Замера Переменного Тока:
-550А до 550А
Диапазона Измерения Постоянного Тока:
-550А до 550А
Линейка Продукции:
CSLA Series
Максимальное Напряжение Питания DC:
12В
Минимальное Напряжение Питания DC:
6В
Точность %:
-
SVHC (Особо Опасные Вещества):
No SVHC (07-Jul-2017)
RoHS статус:
Да
