90/00446901 (JUMO)
Терморезисторный Датчик, вкручиваемый, -50 °C, +300 °C, 100 Ом

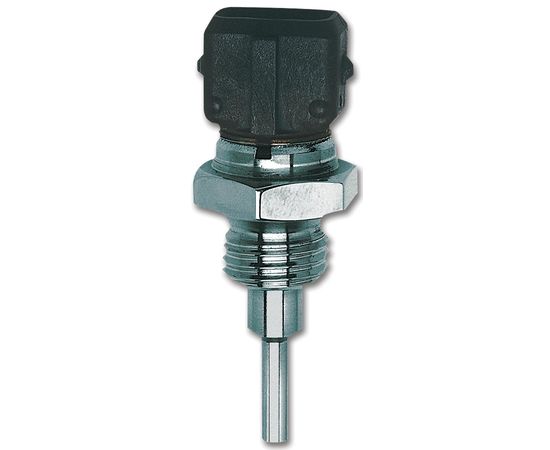

The 90/00446901 from Jumo is a screw-in resistance thermometer with plug connector. The shock proof screw-in resistance thermometer enables temperature measurement under pressure in motors and compressors in plant engineering and in ship building. The connection between protection fitting and connecting cable incorporates a locking system and is protected to IP65 when assembled.
- Operating temperature range from -50 to +300°C
- One Pt100 in 2-wire circuit
- Class B tolerance according to EN 60751 standard
- 7.5mm stepped down to 4mm with EL = 29mm
- Fitting length is 29mm
- Thread M14 x 1.5mm connection
- Highly resistant to shock and vibration
Области применения
Считывание и Контрольно-измерительная Аппаратура
Линейка Продукции:
-
Максимальная Измеряемая Температура:
+300°C
Минимальная Измеряемая Температура:
-50°C
Сопротивление:
100Ом
SVHC (Особо Опасные Вещества):
No SVHC (27-Jun-2018)
