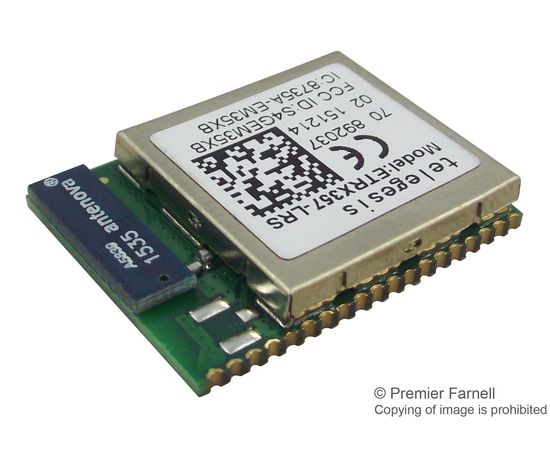

ETRX357HR-LRS (SILICON LABS)
Модуль Zigbee, Em357, 2.4ГГц, разъем U.Fl
ETRX357HR-LRS module is a low power 2.4GHz ZigBee module, long range version with a link budget of up to 124dB based on the latest Ember EM357 single chip ZigBee / IEEE802.15.4 solution. It is designed to be integrated into any device without the need for RF experience and expertise. The module's unique AT-style command line interface allows designers to quickly integrate ZigBee technology without complex software engineering. For custom application development the ETRX357HR-LRS series integrates with ease into Embers insight development environment.
- Small form factor, SMT module 25mm x 19mm
- Side castellation for easy soldering and inspection
- U.FL antenna connector
- Industry's first ARM cortex-M3 based family of ZigBee modules
- Industry standard JTAG programming and real time network level debugging via the Ember insight port
- Lowest deep sleep current of sub 1µA and multiple sleep modes
- 192KB flash and 12Kbytes of RAM
- 32.768KHz watch crystal can be added externally
- Module ships with standard Telegesis AT-style command interface based on the ZigBee PRO feature set
- Can act as an end device, router or coordinator
Области применения
Беспроводное, Автоматизация Зданий, Промышленное, Освещение, Охрана, Считывание и Контрольно-измерительная Аппаратура, Мониторинг Системы
Интерфейс Модуля:
-
Линейка Продукции:
-
Максимальное Напряжение Питания:
-
Минимальное Напряжение Питания:
-
Применение Модуля:
-
Протокол Беспроводной Сети:
-
Семейства Поддерживаемых Микроконтроллеров:
-
Скорость Передачи Данных:
-
SVHC (Особо Опасные Вещества):
No SVHC (15-Jun-2015)
RoHS статус:
Да
